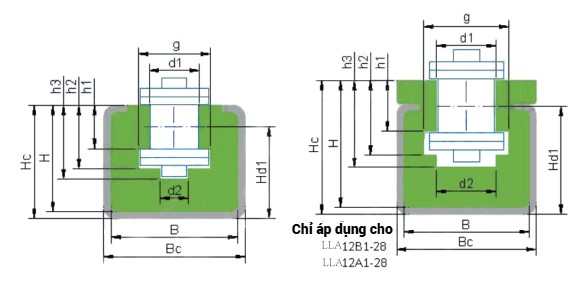

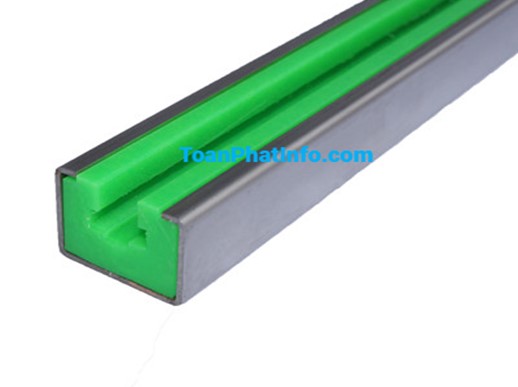

Thanh dẫn hướng xích bi đơn thẳng đứng LLA

Loại

Tham chiếu xích ISO

Xích EN hoặc ASTM

Cấu hình thép C

Bc

Hc

Hd1

LLA06B1

06B-1

3/8" x 7/32"

C10

30

24

21.1

LLA0831

083-1

1/2" x 3/16"

C10

30

24

21.6

LLA08B1

08B-1

1/2" x 5/16"

C10

30

24

20.1

LLA10B1

10B-1

5/8" x 3/8"

C10

30

24

19.2

LLA12B1-24

12B-1

3/4" x 7/16"

C10

30

24

18.2

LLA12B1-28

12B-1

3/4" x 7/16"

C10

30

28

22.2

LLA16B1

16B-1

1" x 17 mm

C11

45

40

31.5

LLA20B1

20B-1

1 1/4" x 3/4"

C11

45

40

30.2

LLA24B1

24B-1

1 1/2" x 1"

C13

65

55

42.3

LLA28B1

28B-1

1 3/4" x 31 mm

C13

65

61

45.5

LLA32B1

32B-1

2" x 31 mm

C13

65

61

45.5

LLA06C1

06C-1

35

C10

30

24

21.6

LLA0851

085-1

41

C10

30

24

20.9

LLA08A1

08A-1

40,208A,2040

C10

30

24

20.1

LLA10A1

10A-1

50,210A,2050

C10

30

24

19.3

LLA12A1-24

12A-1

60,212A,2060

C10

30

24

17.7

LLA12A1-28

12A-1

60,212A,2060

C10

30

28

21.7

LLA16A1

16A-1

80,216A,2080

C11

45

40

32.1

LLA20A1

20A-1

100,220A,2100

C11

45

40

30.6

LLA24A1

24A-1

120,224A,2120

C13

65

55

42.4

LLA28A1

28A-1

140

C13

65

55

42.4

LLA32A1

32A-1

160

C13

65

61

45.2
