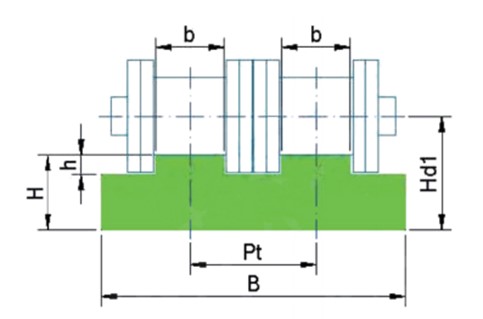

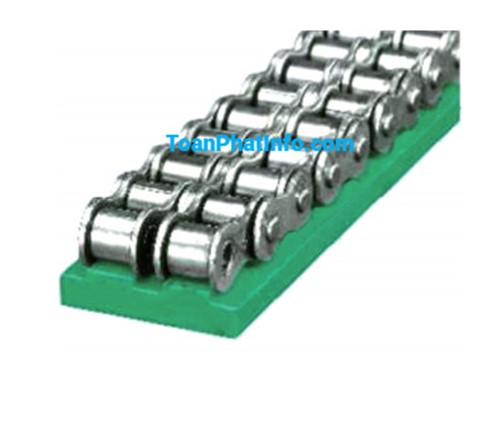

Thanh dẫn hướng xích bi đôi LLM

Loại

Tham chiếu xích ISO

Xích EN hoặc ASTM

B

H

Hd1

LLM06B2

06B-2

3/8" x 7/32"

25

10

13.2

LLM08B2-10

08B-2

1/2" x 5/16"

35

10

14.3

LLM08B2-15

08B-2

1/2" x 5/16"

35

15

19.3

LLM08B2-20

08B-2

1/2" x 5/16"

35

20

24.3

LLM08B2-30

08B-2

1/2" x 5/16"

35

30

34.3

LLM10B2-10

10B-2

5/8" x 3/8"

40

10

15.1

LLM10B2-15

10B-2

5/8" x 3/8"

40

15

20.1

LLM10B2-20

10B-2

5/8" x 3/8"

40

20

25.1

LLM10B2-30

10B-2

5/8" x 3/8"

40

30

35.1

LLM12B2-10

12B-2

3/4" x 7/16"

45

10

16.0

LLM12B2-15

12B-2

3/4" x 7/16"

45

15

21.0

LLM12B2-20

12B-2

3/4" x 7/16"

45

20

26.0

LLM12B2-30

12B-2

3/4" x 7/16"

45

30

36.0

LLM16B2-15

16B-2

1" x 17 mm

47.8

15

22.9

LLM16B2-20

16B-2

1" x 17 mm

47.8

20

27.9

LLM16B2-30

16B-2

1" x 17 mm

47.8

30

37.9

LLM20B2

20B-2

1 1/4" x 3/4"

54.7

15

24.5

LLM24B2

24B-2

1 1/2" x 1"

72

15

27.7

LLM28B2

28B-2

1 3/4" x 31 mm

88.4

20

34.0

LLM32B2

32B-2

2" x 31 mm

87.4

20

34.6

LLM06C2

06C-2

35

25

10

12.5

LLM08A2-10

08A-2

40,208A,2040

35

10

14.0

LLM08A2-15

08A-2

40,208A,2040

35

15

19.0

LLM08A2-20

08A-2

40,208A,2040

35

20

24.0

LLM08A2-30

08A-2

40,208A,2040

35

30

34.0

LLM10A2-10

10A-2

50,210A,2050

40

10

15.1

LLM10A2-15

10A-2

50,210A,2050

40

15

20.1

LLM10A2-20

10A-2

50,210A,2050

40

20

25.1

LLM10A2-30

10A-2

50,210A,2050

40

30

35.1

LLM12A2-10

12A-2

60,212A,2060

45

10

16.0

LLM12A2-15

12A-2

60,212A,2060

45

15

21.0

LLM12A2-20

12A-2

60,212A,2060

45

20

26.0

LLM12A2-30

12A-2

60,212A,2060

45

30

36.0

LLM16A2-15

16A-2

80,216A,2080

44.3

15

22.9

LLM16A2-20

16A-2

80,216A,2080

44.3

20

27.9

LLM16A2-30

16A-2

80,216A,2080

44.3

30

37.9

LLM20A2

20A-2

100,220A,2100

53.7

15

24.5

LLM24A2

24A-2

120,224A,2120

69.4

15

26.1

LLM28A2

28A-2

140

72.8

20

32.7

LLM32A2

32A-2

160

88.5

20

34.3
