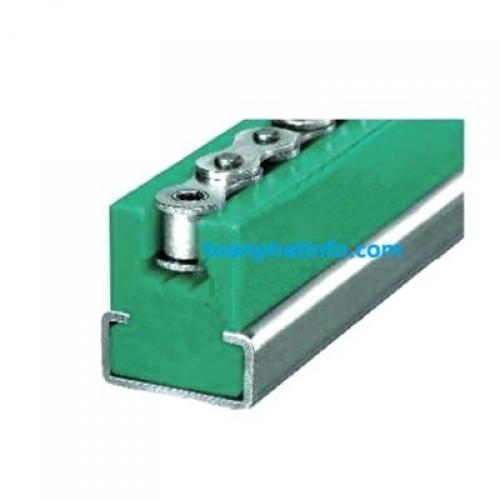

Thanh dẫn hướng xích bi đơn thẳng đứng LLJ

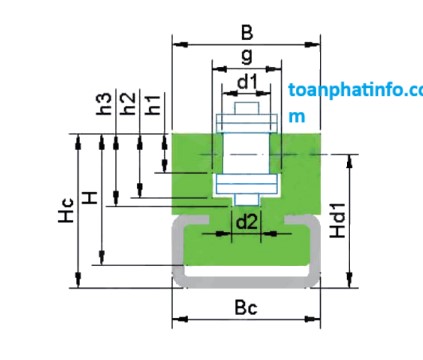

Mã hiệu

Mã hiệu xích ISO

Tiêu chuẩn Châu Âu hoặc Mỹ

Loại thép C

Bc

Hc

Hd1

B

H

LLJ06B1

06B-1

3/8" x 7/32"

C3

20

23

20.1

20

20

LLJ0831

083-1

1/2" x 3/16"

C3

20

23

19.6

20

20

LLJ08B1

08B-1

1/2" x 5/16"

C5

28

30

25.1

24

26

LLJ10B1

10B-1

5/8" x 3/8"

C5

28

32

26.2

28

28

LLJ12B1

12B-1

3/4" x 7/16"

C9

38

42

35.2

32

37

LLJ16B1

16B-1

1" x 17 mm

C9

38

52

42.5

40

47

LLJ20B1

20B-1

1 1/4" x 3/4"

C12

60

59

47.2

60

54

LLJ24B1

24B-1

1 1/2" x 1"

C12

60

69

54.3

60

64

LLJ28B1

28B-1

1 3/4" x 31 mm

C12

60

78

60.5

70

73

LLJ32B1

32B-1

2" x 31 mm

C12

60

79

60.5

70

74

LLJ06C1

06C-1

35

C3

20

22

19.6

20

19

LLJ0851

085-1

41

C3

20

24

20.9

20

21

LLJ08A1

08A-1

40,208A,2040

C7

28

29

25.1

24

25

LLJ10A1

10A-1

50,210A,2050

C7

28

33

27.3

28

29

LLJ12A1

12A-1

60,212A,2060

C9

38

44

36.7

32

39

LLJ16A1

16A-1

80,216A,2080

C9

38

50

41.1

40

45

LLJ20A1

20A-1

100,220A,2100

C12

60

58

46.6

60

53

LLJ24A1

24A-1

120,224A,2120

C12

60

67

52.4

60

62

LLJ28A1

28A-1

140

C12

60

69

54.4

70

64

LLJ32A1

32A-1

160

C12

60

78

60.2

70

73
